Tubo infravermelho do elemento de aquecimento

White Plated Quartz Emitters Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage

White Plated Quartz Emitters Infrared Heating Element Tube with 150-6000W Power and 45-480V Voltage

Nome da marca:	UVIR
Número do modelo:	Conto 3D
MOQ:	Negociável
preço:	Negociável
Condições de Pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE & ROHS

Tensão (V):

45-480V

Serviço de soluções de iluminação:

Projeto de iluminação e circuitos

Cor:

Claro, branco, ouro

Poder:

150-6000W

tubo de quartzo:

8-14mm

Revestimento:

Branco

Detalhes da embalagem:

Cada lâmpada em um cilindro. Então em uma caixa profissional da madeira compensada

Destacar:

White Plated Infrared Heating Element Tube

150-6000W Quartz Emitters

45-480V Infrared Heat Lamp

Descrição do produto

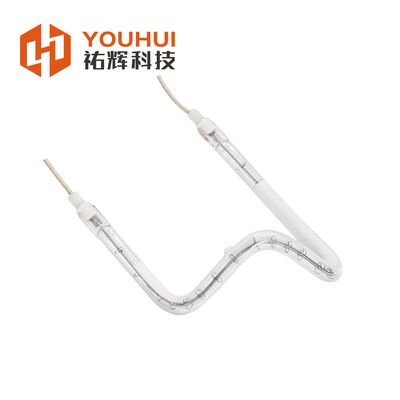

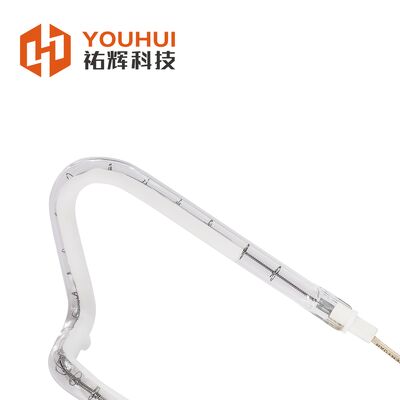

White Plated Quartz Emitters Infrared Heating Element Tube Lamp

High-performance infrared heating elements featuring white plated quartz emitters designed for industrial applications requiring precise and efficient heat transfer.

Product Specifications

Attribute	Value
Voltage (V)	45-480V
Lighting Solutions Service	Lighting and Circuitry Design
Color	Clear, White, Gold
Power	150-6000W
Quartz Tube	8-14mm
Coating	White

Gold Reflector Coating Benefits

Our emitters can be coated with gold or ceramic reflectors to concentrate heat and increase output effectiveness. These coated emitters are highly economical, converting nearly all consumed electrical power into heat.

For emitters with high watt density or surface temperatures above 800°C, we recommend ceramic coating due to its temperature resistance up to 1000°C. Custom coating degrees are available to meet specific requirements beyond the standard 180° (half-tube) coating.

Product Advantages

High purity (SiO₂ > 99.99%)
Working Temperature: 1250°C; Soften Temperature: 1730°C
Excellent thermal stability
Acid-proof and alkali-proof
Superior electrical insulation
Transmission: Visible light >93%, UV light >85%

Technical Specifications

Parameter	Value
Product Name	3D Contoured Emitters
Voltage (V)	45-480V
Wattage (W)	150-6000W
Quartz Tube (mm)	8x18, 11x23, 15x33
Shape	3D Type
Reflector	White

Standard Models

Model 1	Model 2	Model 3	Reference
SHG300169	SHW300001	SHC300002	280770
SHG300049	SHW300002	SHC300003	284343
SHG300043	SHW300003	SHC300004	282094
SHG300050	SHW300004	SHC300005	282016
SHG300164	SHW300005	SHC300006	282014
SHG300165	SHW300006	SHC300007	283932
THG300039	THW300001	THC100001	282002
SHG300037	SHW300007	SHC300008	280773
SHG300166	SHW300008	SHC300009	284058
SHG300170	SHW300009	SHC300010	305417

If these parameters don't meet your requirements, please contact us. Our professional team can provide technical knowledge and custom drawings.

Infrared Lamp Applications

Plastics processing
Photovoltaic industry
Printing industry
Food and chemical industry
Glass industry
Textiles industry
Electronic industry

OEM Services

We provide expert guidance in selecting the right heat lamp for specific applications. Our Technical Department can design custom lamps based on your technical specifications.

We manufacture various sizes and types of heat lamps according to customer requirements. Providing drawings is ideal for accurate sample production.

Frequently Asked Questions

Can I get some samples?

We are happy to provide samples for evaluation and testing.

Do you have any MOQ limit?

Minimum order quantity is low - 1 piece is available for sample checking.

What about the lead time?

15-20 days after receiving your payment.

How does your factory handle quality control?

"Quality is priority." We maintain strict quality control from start to finish. Our factory is certified with CE, ISO9001, RoHS, and SGS.
