Tubo infravermelho do elemento de aquecimento

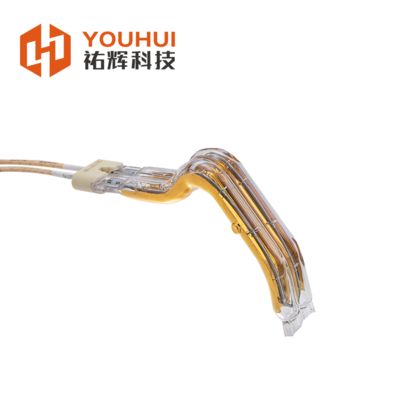

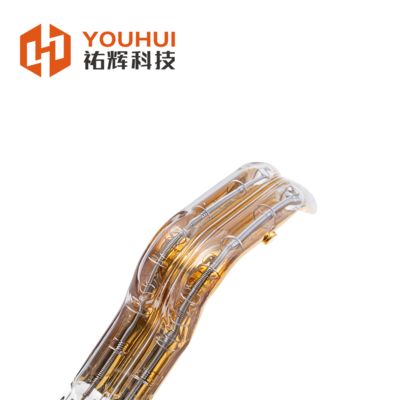

45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube

45-480V 150-6000W Twin Tube L-Type Infrared Heating Lamp with 11x23mm Quartz Tube

Nome da marca:	UVIR
Número do modelo:	L tipo
MOQ:	Negociável
preço:	Negociável
Condições de Pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

China

Certificação:

CE & ROHS

Material:

Vidro

Aplicação:

Carro, trailer, ao ar livre, hotel, garagem, comercial, família,

Nome do produto:

Lâmpada de halogênio de aquecimento circular

Potência:

150-6000W

Diâmetro do tubo:

8x18 11x23 15x33mm

Serviço de soluções de iluminação:

Instalação do projeto

Vida:

5000 horas

Cap de cerâmica:

Sk15 / r7s / rx / tc01 e etc

Tensão:

45-480V

Detalhes da embalagem:

Cada lâmpada em um cilindro. Então em uma caixa profissional da madeira compensada

Destacar:

45-480V Infrared Heating Lamp

150-6000W Halogen Heater Tube

11x23mm Infrared Heating Element Tube

Descrição do produto

45-480V 150-6000W Twin Tube L-Type Infrared Lamp 11x23mm IR Heater Lamp

Product Specifications

Attribute	Value
Material	Glass
Application	Car, RV, Outdoor, Hotel, Garage, Commercial, Household
Product name	Circular heating halogen lamp
Wattage	150-6000W
Tube Diameter	8x18 11x23 15x33mm
Lighting solutions service	Project Installation
Lifetime	5000 hours
Ceramic Cap	SK15 / R7S /RX / TC01 and etc
Voltage	45-480V

Product Description

Infrared heater which is best matched to the materials to be heated can provide energy savings of up to 50% over other technologies. Our professional infrared technology delivers heat exactly where it's needed, with the optimum wavelength for the product.

Ring Tube IR Lamps Features

Special designs for circular 2.3-D surfaces
Ring diameter from 39 up to 600 mm
Voltage from 24 to 575 V
Short, medium and long-wave IR designs available in various tube colors
Tube diameter from 8-14mm
Selection depends on heater's diameter and the voltage-wattage relationship
Excellent shock terms for immediate delivery
Custom and OEM designs available

Technical Parameters

Parameter	Specification
Product name	L type infrared lamp
Voltage	48-480V
Power	150-6000W
Shape	Round or alien, can be customized
Pipe diameter	8x18 11x23 15x33mm
Material	Quartz tube
Coating	Gold
OEM/ODM	Many types of voltage, wattage, length, base, cables available with universal burning position

Selected Stock and Standard (Non-Stock) Contour

Short-Wave IR Lamps for 3-D Applications

Safety Precautions

The relative humidity of the air should not exceed 95%
No flammable, explosive, corrosive gas or conductive dust in the environment
Protect from violent impact and vibration
Working voltage should not exceed 1.1 times the rated value
Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min

Applications

Heater: Space heater, Sauna, Electric hot table, Incubating, Brooders, Farm green house
Automotive: Primer/Color/Powder coat, Seat de-wrinkling, Head liner forming
Plastics: Welding, Forming, Softening, Curing, Drying
Printing: Ink drying, Silk Screening, Bindings, Glue drying
Food: Baking, Browning, Dehydrating, Pasteurizing
Textiles: Web Drying, Finishing, Pre-shrinking
Glass-Ceramics: Heating safety glass, Drying mirrors, Drying frit

Frequently Asked Questions

How to place the order?

Provide your required lamp specifications including lamp type, diameter, length, power, voltage, reflector. We'll send you a quotation. After payment, production begins and products will be shipped when completed.

Do you supply clamps for lamp installation?

Yes, we provide mounting clamps for clients. The corresponding clamps quantity with purchased lamps are supplied freely by us.

Have an unusual design?

Send us a drawing, sketch, or sample and we'll be happy to quote it. We specialize in small runs and custom designs, but can be highly competitive on large orders as well.

If the parameter is not suitable for you, please contact us. Our professional team will provide technical knowledge and drawings for your specific needs.
